CytoLinX® BRTF Single-use Top-driven Bioreactor Bag

The core of the CytoLinX® BRTF 50 L microbial fermentation system is the single-use microbial bioreactor bag designed to meet the stringent requirements of microbial fermentation. It is used for cultivating various organisms, including E-coli, pseudomonas, and yeast. The single-use microbial bioreactor bag is based on the proven design and materials of the CytoLinX® BRTF Single-Use Bioreactor Bag for mammalian cell culture.

  • RENOLIT 9101 multilayer co-extruded film, ULDPE liquid contact layer, offering excellent biocompatibility and chemical compatibility while ensuring low levels of extractable content.

  • The dual impeller design enables vigorous mixing of the culture, and the bottom magnetic coupling eliminates external shafts, minimizing the risk of leakage.

  • All single-use microbial bioreactor bags are equipped with pressure sensors to maintain bag integrity during demanding fermentation processes.

  • The vent filter is equipped with a condensation bag at the front end to integrate condensation, returning water vapor from the gas back into the bag, ensuring the ventfilter remains unclogged.

Inquiry
Download
Features Specifications Contact us

Features of CytoLinX® BRTF Single-use Top-driven Bioreactor Bag

CytoLinX® BRTF Single-use Top-driven Bioreactor Bag is designed to match single-use top mechanical coupling bioreactor used in biopharmaceuticals. The product can be used for scientific research, process development and commercial production of CHO, Vero, and MDCK cells, etc.

  • FirmaX R S32 multilayer co-extruded film, ULDPE fluid contact layer, offering excellent biocompatibility and chemical compatibility while ensuring low levels of extractable content

  • The porous-frit microsparge column is designed from ultra-high molecular weight polyethylene (UHMW- PE), with pore sizes ranging from 20-40 μm. The generated bubbles possess a high surface area ratio and good oxygen transfer. UHMW-PE exhibits outstanding impact resistance, wear resistance, chemical corrosion resistance, physiological inertness, adaptability, and hydrophobicity

  • The macro-perforated microporous membrane is a dispersed aeration disc based on film. Laser-drilled to maintain uniform pore size, various specifications such as 0.178mm, 0.233mm, 0.368mm, 0.445mm, 0.582mm are available, tailored with specific apertures and quantities for each bag specification

  • Equipped with imported filters to ensure bag integrity

  • All pipelines can be flexibly customized

  • Fully validated, complete validation reports can be provided


Specifications of CytoLinX® BRTF Single-use Top-driven Bioreactor Bag

Standard Configuration of CytoLinX® BRTF Single-use Top-driven Bioreactor Bags

Volume

Version

Cat. No.

Configuration

brtf single use top driven bioreactor bags

DHS+Frit

5:1


BRTF-

0050-C221

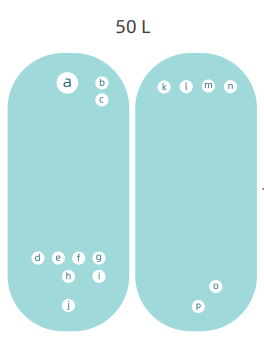

  • a (top-driven mixing parts): 3-blade impeller, diameter: 111.1 mm, angle: 45°

  • b (overlay): pressure sensor, ESG02MGSHHG12 (Saint-Gobain), 20 cm1/2" x 3/4" TPE thermoplastic tubing + 16 cm 1/4" x 7/16" TPE thermo-plastic tubing

  • c (intlet / feed): 150 cm 1/4" x 7/16" TPE thermoplastic tubing, 30 cm 1/8" x 1/4" TPE thermoplastic tubing plug

  • k (intlet / feeding port): 150 cm 3/8" x 5/8" TPE thermoplastic tubing, Y connector

  • tubing 1: 40 cm 3/8" x 5/8" TPE thermoplastic tubing, plug

  • tubing 2: 10 cm 3/8" x 5/8" TPE thermoplastic tubing, 30 cm 1/4" x 7/16" TPE thermoplastic tubing, plug

  • l (intlet): 180 cm 3/8" x 5/8" TPE thermoplastic tubing, plug

  • n (feeding port): 15 cm 1/4" x 7/16" TPE thermoplastic tubing, 150 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • m (vent filter): 20 cm 1/2" x 3/4 TPE thermoplastic tubing, Y connector

  • tubing 1: 25 cm 1/2" x 3/4" TPE thermoplastic tubing, ESG02MGSHHG12(Saint-Gobain)

    tubing 2: 15 cm 1/2" x 3/4" TPE thermoplastic tubing, AseptiQuik® G sterile connector, 1/2"HB

  • d, e, f, g (sensor): AseptiQuik® G aseptic connector, 1/2"HB

  • i (sampling): thermowell, ID3.5 mm,

    tubing 1: 30 cm 1/8" x 1/4" TPE thermoplastic tubing, needless sampling

    tubing 2: 80 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • d(sensor): thermowell, ID3.5 mm

  • j (harvest port): 100 cm 1/2" x 3/4" TPE thermoplastic tubing, 30 cm 3/8" x 5/8" 1/8" x 1/4" TPE thermoplastic tubing, plug

  • o, p (bottom gas):15 cm 1/4" x 7/16" TPE thermoplastic tubing, check valve, 150 cm 1/4" x 7/16" TPE thermoplastic tubing, ESG02MGSHHG12(Saint-Gobain)

DHS+Frit

2:1


BRTF-

0050-C222



Volume

Version

Cat. No.

Configuration

CytoLinX® BRCF Single-Use Top-Driven Bioreactor Bag

DHS+Frit

5:1

BRTF-

0250-C221

  • a (top-driven mixing parts): 3-blade impeller, diameter: 200 mm, angle: 45°

  • i (overlay): pressure sensor,ESG02MGSTKG12 (Saint-Gobain),

    20 cm1/2" x 3/4"TPE thermoplastic tubing+ 16 cm 1/4" x 7/16"TPE thermoplastic tubing

  • m (feeding port): 15 cm 1/4" x 7/16"TPE thermoplastic tubing, 180 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • k, l (intlet/feeding port): 150 cm 3/8" x 5/8" TPE thermoplastic tubing, Y connector,

  • tubing 1: 30 cm 3/8" x 5/8" TPE thermoplastic tubing, plug;

  • tubing 2: 20 cm 3/8" x 5/8" TPE thermoplastic tubing, 40 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • n (intlet/feeding port): 150 cm 1/4" x 7/16" TPE thermoplastic tubing, 50 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • j (vent filter): 42 cm 3/4" x 1", TPE thermoplastic tubing, Y connector,

    tubing 1: 30 cm 1/2" x 3/4" TPE thermoplastic tubing, ESG02MGSHHG12(Saint-Gobain)

    tubing 2: 20 cm 1" x 3/4" TPE thermoplastic tubing, AseptiQuik® G sterile connector, 1/2"HB

  • b, c, d, e (sensor): AseptiQuik® G aseptic connector, 1/2"HB

  • g (sampling port): 10 cm 1/8" x 1/4" TPE thermoplastic tubing, Y-connector,


    tubing 1: 30 cm 1/8" x 1/4" TPE thermoplastic tubing, needless sam-pling

    tubing 2 : 80 cm 1/8" x 1/4"  TPE thermoplastic tubing, plug

  • f (sensor): thermowell, ID3.5 mm

  • h (harvest port): 150 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

  • o, p (bottom gas): ESG02MGSTKG12, 15 cm 1/4" x 7/16" TPE thermoplastic tubing, check valve, 150 cm 1/4" x 7/16"  TPE thermoplastic tubing

DHS+Frit

2:1

BRTF-

0250-C222

CytoLinX® BRCF Single-Use Top-Driven Bioreactor Bag

DHS+Frit

5:1

BRTF-

0500-C221

  • a (top-driven mixing parts): 3-blade impeller, diameter: 251 mm, angle: 45°

  • k (overlay): pressure sensor,ESG02MGSTKG12 (Saint-Gobain),

    25 cm 1/2" x 3/4" TPE thermoplastic tubing + 16 cm 1/4" x 7/16"TPE thermoplastic tubing

  • l (feeding port): 15 cm 1/4" x 7/16" TPE thermoplastic tubing, 230 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • m (intlet/feeding port): 250 cm 1/4" x 7/16" TPE thermoplastic tubing, plug,

  • n, o (intlet/feeding port): 180 cm 3/8" x 5/8" TPE thermoplastic tubing, Y-connector

  • tubing 1: 30 cm 3/8" x 5/8"TPE thermoplastic tubing, plug;

  • tubing 2: 30 cm 3/8" x 5/8" TPE thermoplastic tubing, 30 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • p (intlet/feeding port): 250 cm 3/8" x 5/8" TPE thermoplastic tubing, plug

  • j (vent filter): 40 cm 3/4" x 1" TPE thermoplastic tubing, Y-connector

    tubing 1: 30 cm 3/4" x 1" TPE thermoplastic tubing, ESG02MGETTG12(Saint-Gobain)

    tubing 2: 20 cm 3/4" x 1" TPE thermoplastic tubing, AseptiQuik® G sterile connector, 3/4"HB

  • b, c, d, e, f (sensor): AseptiQuik® G sterile connector, 1/2"HB

  • g (sampling): 10 cm 1/8" x 1/4" TPE thermoplastic tubing, needless sampling

    tubing 1: 30 cm 1/8" x 1/4" TPE thermoplastic tubing, needless sampling

    tubing 2: 80 cm 1/8" x 1/4" TPE thermoplastic tubing,plug

  • h (sensor): thermowell, ID3.5 mm

  • i (harvest port): 150 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

  • q, r (bottom gas): ESG02MGSTKG12 (Saint-Gobain), 16 cm 1/4" x 7/16"TPE thermoplastic tubing, 185 cm 1/4" x 7/16" TPE thermoplastic tubing


Volume

Version

Cat. No.

Configuration

CytoLinX® BRCF Single-Use Top-Driven Bioreactor Bag

DHS+Frit

5:1

BRTF-

1000-C221

  • a (top-driven mixing parts): 3-blade impeller, diameter: 321 mm, angle: 45°

  • k (overlay): pressure sensor, ESG02MGSTKG12 (Saint-Gobain), 50 cm1/2" x 3/4" TPE thermoplastic tubing + 20 cm 1/4" x 7/16"TPE thermoplastic tubing

  • l (feeding port): 15 cm 1/4" x 7/16" TPE thermoplastic tubing, 250 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • m (intlet/feeding port): 250 cm 1/4" x 7/16"TPE thermoplastic tubing, 30 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • n, o (intlet/feeding port): 250 cm 3/8" x 5/8" TPE thermoplastic tubing, Y-connector,

    tubing 1: 30 cm 3/8" x 5/8" TPE thermoplastic tubing, plug;

    tubing 2: 20 cm 3/8" x 5/8" TPE thermoplastic tubing, 35 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • j (vent filter): ESG02MGETTG12 (Saint-Gobain)×2, Y-connector,

    tubing 1: 25 cm 3/4" x 1" TPE thermoplastic tubing

    tubing 2: 25 cm 3/4" x 1" TPE thermoplastic tubing

  • b, c, d, e, f (sensor): AseptiQuik® G aseptic connector, 1/2"HB

  • g (sampling port): 10 cm 1/8" x 1/4"TPE thermoplastic tubing, Y-connector,

    tubing 1: 30 cm 1/8" x 1/4" TPE thermoplastic tubing, needless

    tubing 2: 80 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • h (sensor): thermowell, ID3.5 mm

  • i (harvest port): 160 cm 1/2" x 3/4"TPE thermoplastic tubing, 30 cm 3/8" x 5/8"TPE thermoplastic tubing, Y- connector

    tubing 1: 30 cm 3/8" x 5/8" TPE thermoplastic tubing, plug;

    tubing 2: 20 cm 3/8" x 5/8"TPE thermoplastic tubing, 35 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • p, q(sparger): ESG02MGSTKG12( Saint-Gobain), 16 cm 1'4" x 7/16" TPE thermoplastic tubing, check valve, 185 cm 1/4" x 7/16" TPE thermoplastic tubing

CytoLinX® BRCF Single-Use Top-Driven Bioreactor Bag


DHS+Frit

5:1

BRTF-

2000-C221

  • a (top-driven mixing parts): 3-blade impeller, diameter: 397 mm, angle: 45°

  • c (overlay): pressure sensor, ESG02MGSTKG12 (Saint-Gobain), 50 cm 1/2" x 3/4" TPE thermoplastic tubing + 30 cm 1/4" x 7/16"TPE thermoplastic tubing

  • f (feed): 50 cm 1/4" x 7/16" TPE thermoplastic tubing, 220cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • h, i (intlet'feed): 220 cm 1/4" x 3/4" TPE thermoplastic tubing, 50 cm 3/8" x 5/8" TPE thermoplastic tubing, plug

  • d (intlet'feed): 220 cm 1/4" x 7/16" TPE thermoplastic tubing, 50 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • g(Inlet): 15cm 1" x 1 - 3/8" TPE thermoplastic tubing, Y-connector(inner extension tubing)

    tubing 1: 15 cm 3/4" x 1"  TPE thermoplastic tubing, 250 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

    tubing 2: 15 cm 3/4" x 1"  TPE thermoplastic tubing, 250 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

  • b,j (vent filter): ESG02MGETTG12 (Saint-Gobain)×2, Y connector,

    tubing 1: 25 cm 3/4" x 1" TPE thermoplastic tubing

    tubing 2: 25 cm 3/4" x 1" TPE thermoplastic tubing

  • q (vent filter): 10 cm1/8" x1/4" TPE thermoplastic tubing,  Y-connector,

    tubing 1: 30 cm 1/8" x 1/4" TPE thermoplastic tubing, needless sampling

    tubing 2: 80 cm 1/8" x 1/4" TPE thermoplastic tubing, plug

  • r (sensor): thermowell, ID 3.5mm

  • x (harvest): 150 cm 3/4" x 1" TPE thermoplastic tubing, Y-connector,

    tubing 1: 15 cm 3/4" x 1"  TPE thermoplastic tubing+ 60 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

    tubing 2: 15 cm 3/4" x 1"  TPE thermoplastic tubing+ 60 cm 1/2" x 3/4" TPE thermoplastic tubing, plug

  • s,t,u,w (sparger): ESG02MGSTKG12 (Saint-Gobain), 8 cm 1/4" x 7/16" TPE thermoplastic tubing, check valve, 200 cm 1/4" x 7/16" TPE thermoplastic tubing

**Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.
