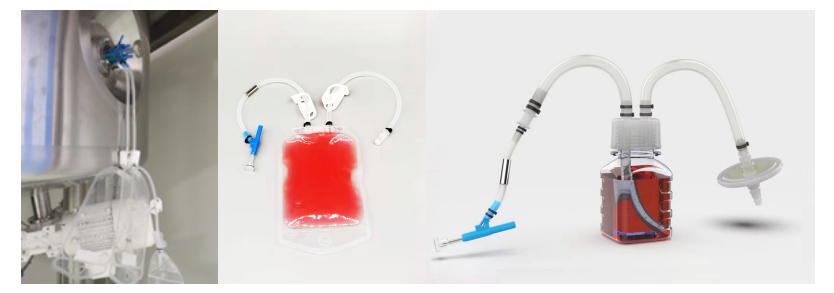

BioHub® Single-use Sampling Bottle

Product sampling is necessary and critical for cell culture and other operations in biopharmaceutical processes. Samples collected through BioHub® Single-use Sampling Bottle can be used to determine critical purity attributes, such as sterility, endotoxin levels, bioburden, and important cell culture parameters including metabolites, nutrient levels, pH, and osmolarity. BioHub® Single-use Sampling Bottle provides a preassembled sampling solution.


Inquiry
Download
Features Validation Documents Specifications Contact us

It is specially designed for sampling operations at various stages of biopharmaceutical processes such as in process monitoring of buffer storage, medium preparation, product collection and analysis. To mitigate the risk of residual contamination and ensure the safety of bioprocess, the product is sterilized by irradiation prior to delivery.




Features of BioHub® Single-use Sampling Bottle

  • Types of sampling container: bags and bottles

  • Volume range: sampling bag 50 mL to 1 L, sampling bottle 20 mL to 250 mL

  • 2 mm needle, covers a variety of liquid sampling needs in the entire bio-process

  • The material of the liquid contact layer of both the sampling bags (ULDPE) and sampling bottles (PC) complies  with biopharmaceutical requirements

  • High transparency and excellent compatibility

  • Overmolded needles and tubings for assurance of airtightness and sterility

  • Adequate validation documents to ensure safety in use

  • Operating temperature range: sampling bag − 80 ° C to 60 ° C, sampling bottle − 80 ° C to 121 ° C

  • Maximum operating pressure: single-needle, single-bag products: 0.5 bar; single-needle, 5-bag products: 0.3  bar

  • Customization available


Validation Documents of BioHub® Single-use Sampling Bottle

  • 100% integrity testing

  • USP <665>, Extractable testing

  • USP <88> , Class VI plastics

  • USP <87>, Cytotoxicity

  • USP <788>, Particulate Matter in Injections

  • USP <85>, Bacterial Endotoxins

  • ISO 11137, Sterility testing

  • ISO 10993-4, Hemolysis testing


single use sampling bag

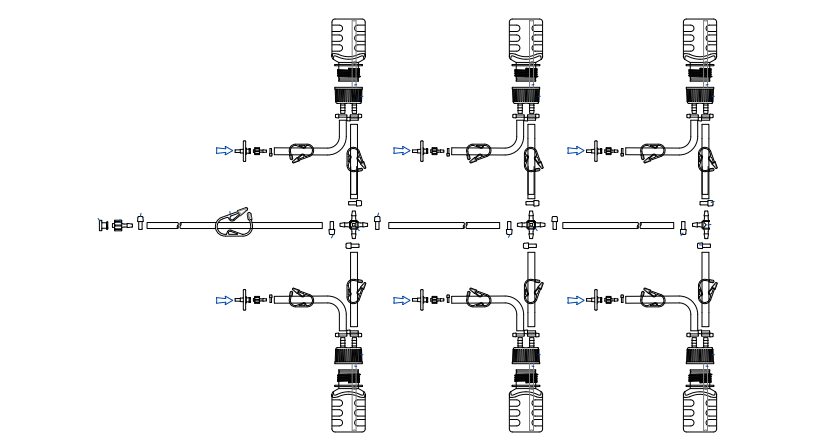

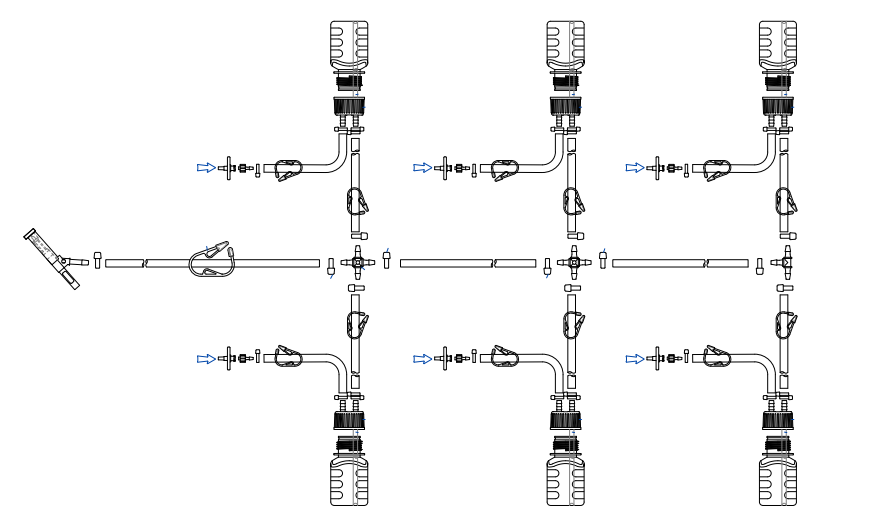

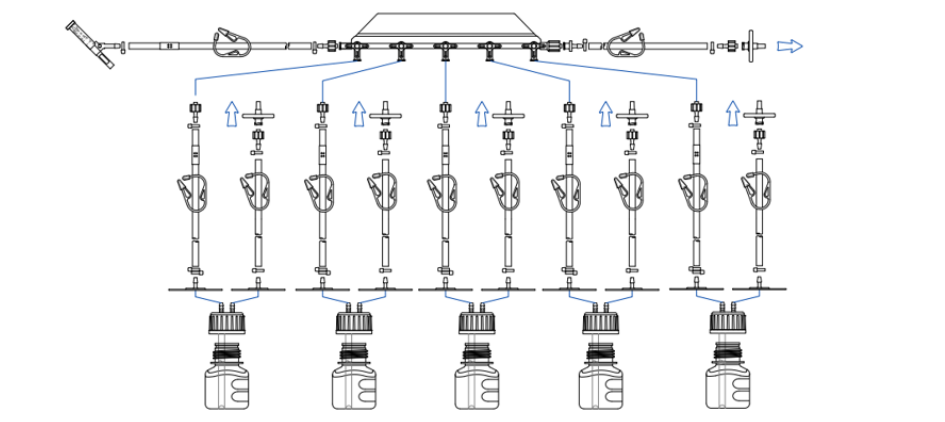

Specifications of BioHub® Single-use Sampling Bottle

Cat. No.VolumeInlet tubingOutlet tubing
TSTG-ST03720 mL2 mm needle, silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with metal ring for sterile disconnection		Silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with vent filter
TSTG-ST03850 mL
TSTG-ST039125 mL
TSTG-ST040250 mL
TSTG-ST0412 × 20 mL2 mm needle, silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with metal ring for sterile disconnection		Silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with vent filter
TSTG-ST0422 × 50 mL
TSTG-ST0432 × 125 mL
TSTG-ST0442 × 250 mL
TSTG-ST0453 × 20 mL2 mm needle, silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with metal ring for sterile disconnection		Silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with vent filter
TSTG-ST0463 × 50 mL
TSTG-ST0473 × 125 mL
TSTG-ST0483 × 250 mL
TSTG-ST0495 × 20 mL2 mm needle, silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with metal ring for sterile disconnection		Silicone tubing,
ID 3.2 mm*OD 6.4 mm,
25 cm in length, with vent filter

Ordering Information

Sampling bag

Cat. No.VolumeInlet tubingOutlet tubing
BS-X050-S00550 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with a metal ring for sterile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with needleless sam-pling

BS-X100-S005100 mL
BS-X250-S005250 mL
BS-X500-S005500 mL
BS-0001-S0051000 mL

BS-X050-S006

2 × 50 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with a metal ring for sterile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with needleless sam- pling

BS-X100-S006

2 × 100 mL

BS-X250-S006

2 × 250 mL

BS-X050-S0073 × 50 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with a metal ring for  sterile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with needleless sam-pling

BS-X100-S0073 × 100 mL
BS-X250-S0073 × 250 mL
BS-X050-S0085 × 50 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with a metal ring for  sterile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with needleless sam-pling

BS-X100-S0085 × 100 mL
BS-X250-S0085 × 250 mL

Sampling bottle

Cat. No.VolumeInlet tubingOutlet tubing
TSTG-ST03720 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with metal ring for ster-ile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with vent filter

TSTG-ST03850 mL
TSTG-ST039125 mL
TSTG-ST040250 mL

TSTG-ST041

2 × 20 mL


2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with metal ring for ster-ile disconnection


Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with vent filter

TSTG-ST042

2 × 50 mL

TSTG-ST043

2 × 125 mL

TSTG-ST044

2 × 250 mL

TSTG-ST0453 × 20 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with metal ring for ster-ile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with vent filter

TSTG-ST0463 × 50 mL
TSTG-ST0473 × 125 mL
TSTG-ST0483 × 250 mL
TSTG-ST0495 × 20 mL

2 mm needle, silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with metal ring for ster-ile disconnection

Silicone tubing,

ID 3.2 mm*OD 6.4 mm,

25 cm in length, with vent filter

TSTG-ST0505 × 50 mL
TSTG-ST0515 × 125 mL
TSTG-ST0525 × 250 mL

Sampling unit

Cat. No.Volume

Inlet tubing

Outlet tubing

TSTG-ST053NA2 mm needle, silicone tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a metal ring for sterile disconnection and a male Luer and cap at the end
TSTG-ST054NA2 mm needle, C-Flex tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a male Luer and cap at the end
TSTG-ST055NA2 mm needle, PVC tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a male Luer and cap at the end

Sampling parts

Cat. No.Description

Note

PLUG001GHSilicone plug with handleNon-sterile，needle-free
PLUG001SHSilicone plug with handleSterile，needle-free
FPE7E00GHSampling needle componentNon-sterile，with needle
FPE7E00SHSampling needle componentSterile，with needle
