BioHub^®2D Single-use Storage bags

Name: BioHub ® 2D Single-use Storage bags
Brand: Bio-Link

BioHub^®2D Single-use Storage bags are designed for bioprocess needs. As a 2D biocontainer, it is suitable for liquid mixing, storage, transport, and cryopreservation.

Inquiry

Features Specifications Quality Holder Film Contact us

BioHub^®2D Single-use Storage bags are made of multi-layer co-extrusion films. The ship-typed integrated welded outlet helps to minimize residual liquid. The outlet is available in 1/8", 1/4" and 3/8" and can be connected to silicone and thermoplastic tubing. The combination of BioLink 2D storage bags with single-use tubings can meet the re-quirements of different processes and liquids.

Features of BioHub^® 2D Single-use Storage bags

Volume range: 5 mL–50 L
Wide applications: for collection of purified components, bulk solution storage, intermediate product storage, medium storage, etc.
Highly customizable, and configurable with a variety of connectors, hoses, and functional units

Specifications of BioHub^® 2D Single-use Storage bags

Cat. No.	Volume	Line 1	Line 2	Line 3(sampling)	Film
BC-X005-S007	5 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	NA	NA	Imported
BC-X005-S015	5 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	NA	NA	Imported
BC-X010-S007	10 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X010-S015	10 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-X020-S007	20 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X020-S015	20 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-X050-S007	50 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X050-S015	50 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-X100-S007	100 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X100-S015	100 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-X250-S007	250 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X250-S015	250 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-X500-S007	500 mL	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + male Luer	10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling	Imported
BC-X500-S015	500 mL	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	30 cm ID1/8"*OD1/4" thermoplastic tubing + plug	10 cm ID1/8"*OD1/4" thermoplastic tubing + needleless sampling	Imported
BC-0001-S007	1 L	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + female MPC	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0001-S015	1 L	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported
BC-0002-S007	2 L	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + female MPC	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0002-S015	2 L	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported
BC-0005-S007	5 L	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + female MPC	30 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0005-S015	5 L	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	30 cm ID1/4"*OD7/16" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported
BC-0010-S007	10 L	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + female MPC	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0010-S015	10 L	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported
BC-0020-S007	20 L	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + female MPC	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0020-S015	20 L	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported
BC-0050-S007	50 L	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + female MPC	30 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC	20 cm ID1/4"*OD7/16" platinum cured silicone tubing + needleless sampling	Imported
BC-0050-S015	50 L	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	30 cm ID3/8"*OD5/8" thermoplastic tubing + plug	20 cm ID1/4"*OD7/16" thermoplastic tubing + needleless sampling	Imported

Cat. No.

Volume

Line 1

Line 2

Line 3(sampling)

Film

BC-X005-S009

5 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

NA

Self-

developed

BC-X005-S014

5 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

NA

Self-

developed

BC-X010-S009

10 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X010-S014

10 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-X020-S009

20 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X020-S014

20 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-X050-S009

50 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X050-S014

50 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-X100-S009

100 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X100-S014

100 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-X250-S009

250 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X250-S014

250 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-X500-S009

500 mL

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + female Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + male Luer

10 cm ID1/8"*OD1/4"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-X500-S014

500 mL

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

30 cm ID1/8"*OD1/4"

thermoplastic tubing + plug

10 cm ID1/8"*OD1/4"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0001-S009

1 L

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + female MPC

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0001-S014

1 L

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0002-S009

2 L

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + female MPC

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0002-S014

2 L

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0005-S009

5 L

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + female MPC

30 cm ID1/4"*OD7/16"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0005-S014

5 L

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

30 cm ID1/4"*OD7/16"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0010-S009

10 L

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + female MPC

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0010-S014

10 L

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0020-S009

20 L

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + female MPC

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0020-S014

20 L

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

BC-0050-S009

50 L

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + female MPC

30 cm ID3/8"*OD5/8"

platinum cured silicone tubing + male MPC

20 cm ID1/4"*OD7/16"

platinum cured silicone tubing + needleless sampling

Self-

developed

BC-0050-S014

50 L

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

30 cm ID3/8"*OD5/8"

thermoplastic tubing + plug

20 cm ID1/4"*OD7/16"

thermoplastic tubing + needleless sampling

Self-

developed

Quality Control of BioHub^® 2D Single-use Storage bags

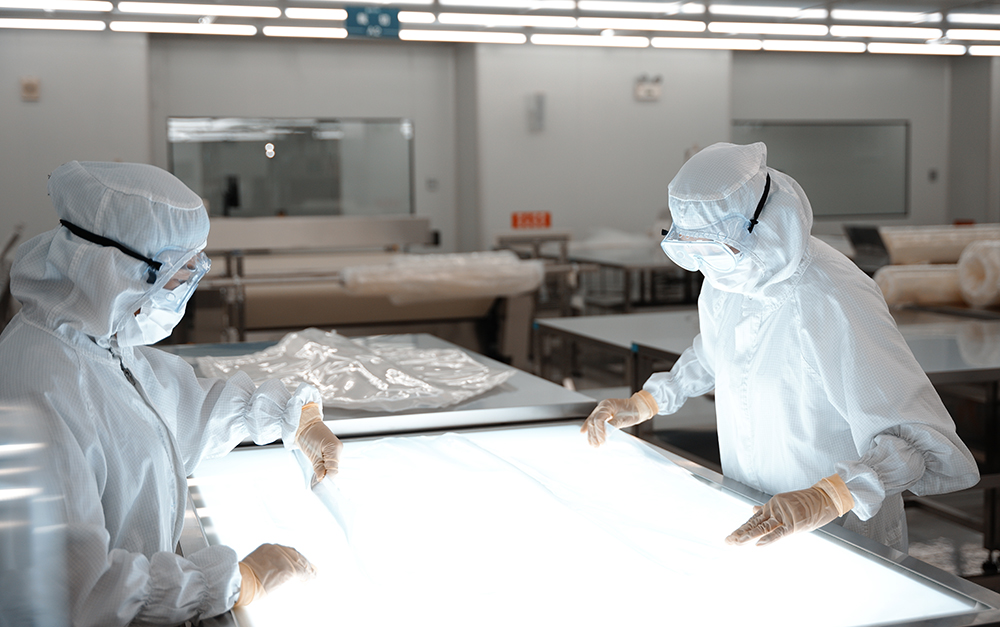

In controlled environments (ISO Class 7 environments).
Following ISO 9001:2015 certified quality system.
Animal-derived component-free (ADCF).
Meets USP <87>, USP <88> Class VI, USP <661>, USP<85>, USP <788>, ISO11737-1, ISO11737-2, and ISO11137 for liquid contact materials.
Document support: Shipped with COQ or COA.
Sterilization: 25–40 KGy of gamma.
Shelf life: 2 years.
Packaging: Double bagged.

Single Use Storage Bags

2D Storage Bags and Matching Holder Series

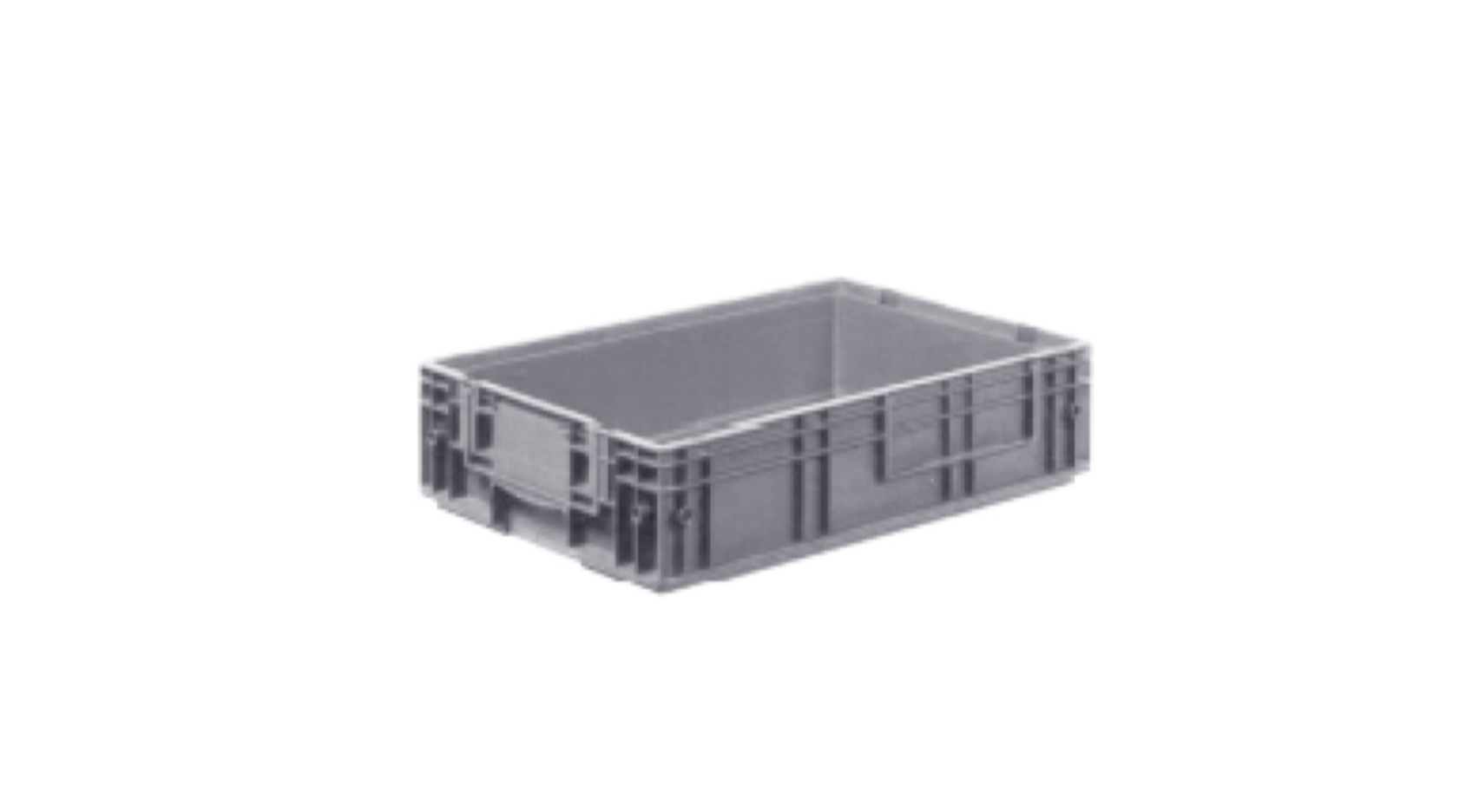

Trays for 2D storage bags: Plastic trays

Part number	Tray capacity	Material	Dimensions LWH	Weight	Cover	Part number	Cover dimensions	Weight
TRAY0005L001	5 L	PP	300200150 mm	0.6 kg	Optional	TRAY0005LC	30020030 mm	0.3 kg
TRAY0010L001	10 L	PP	400300150 mm	1.1 kg	Optional	TRAY0010LC	40030030 mm	0.4 kg
TRAY0020L001	20 L	PP	600400150 mm	1.8 kg	Optional	TRAY0020LC	60040030 mm	0.7 kg

Trays for 2D storage bags: Stainless steel trays

Part number	Tray capacity	Material	Dimensions (LWH)	Weight	Cover
TRAY0005L002	5 L	SS 304L	48027080 mm	6 kg	Standard
TRAY0010L002	10 L	SS 304L	600370120 mm	8 kg	Standard
TRAY0020L002	20 L	SS 304L	760460160 mm	11 kg	Standard
TRAY0050L002	50 L	SS 304L	910644200 mm	18 kg	Standard

Cryopreservation cases for 2D storage bags

Part number	Match bag	Case dimensions including outer package	Weight	Package
CASE050ML001	BioHub^® Series standard 50 mL bag	290*185 mm	0.8kg	10/box
CASE100ML001	BioHub^® Series standard 100 mL bag	320*210 mm	1.2kg	10/box
CASE250ML001	BioHub^® Series standard 250 mL bag	370*235 mm	2.5kg	10/box
CASE500ML001	BioHub^® Series standard 500 mL bag	400*255 mm	3.8kg	10/box
CASE0001L001	BioHub^® Series standard 1 L bag	606406100 mm	2.5 kg	5/box
CASE0002L001	BioHub^® Series standard 2 L bag	606406100 mm	3.0 kg	5/box
CASE0005L001	BioHub^® Series standard 5 L bag	700500120 mm	3.5 kg	5/box
CASE0010L001	BioHub^® Series standard 10 L bag	1000600120 mm	6 kg	5/box
CASE0020L001	BioHub^® Series standard 20 L bag	1000600120 mm	7 kg	5/box
*Cryopreservation cases for other types of bags are available. Contact BioLink experts in your location for details.

BioHub^® Film

The films of BioHub^® 2D Single-use Storage bags are from Renolit----the world's top film supplier. The biopharmaceutical-dedicated film is manufactured by the advanced multi-layer co-extruded technology, adequate certificates of material quality and validation documents are provided. Its physiochemical intensity, gamma irradiation tolerance, extractable level, and biological safety all meet the strictest standard of biopharmaceutical industry.

Bioprocess Bags Biohub Film

Features

Similar materials of construction, extremely low level of extractables and leachables;
High barrier property, optimizing the stability of products in the bag;
High transparency, easy to observe the status of products in the bag;
Animal-derived component-free (ADCF) materials, ensuring safety.

Film features

Physical properties	Unit	Test value (before/after irradiation)	Reference standard
Haze	%	7/7	ASTM D-1003
Clarity	%	97/97	ASTM D-1003
Transmittance	%	93/93	ASTM D-1003
Tensile strength	MPa	14/13	ASTM D-882
Elongation at break	%	280/300	ASTM D-882
Modulus of elasticity	MPa	370/350	ASTM D-882
Density	g/cm³	0.9	ASTM D-792
Moisture vapor transmission rate (MVTR)	g/(m² .day)	0.35/0.32(23 ℃, 100%RH)	ASTM F-1249
Oxygen permeability	cm³/(m² .day.bar)	＜ 0.05/ ＜ 0.05(23 ℃, 0%RH)	ASTM D-3985
Carbon dioxide permeability	cm³/(m² .day.bar)	＜ 0.2/ ＜ 0.2(23 ℃, 0%RH)	ASTM F-2476

Biocompatibility (irradiation dose > 45 kGy)

Hemolysis	ISO 10993-4	PASS
Cytotoxicity	ISO 10993-5	PASS
Implantation test	ISO 10993-6	PASS
Sensitization test	ISO 10993-10	PASS
Acute systemic toxicity test	ISO 10993-11	PASS
Class VI plastic USP	USP<88>	PASS
Biocompatibility	USP<87>	PASS
Contact BioLink experts in your location for more information on films and products.

Quality assurance system

The BioLink single-use product manufacturing factory has been certified by ISO9001:2015 and ISO13485:2016.

Link With Us Now!

Want to know more about BioLink bioprocessing products? Feel free to contact BioLink now!

Email

info@biolink.com

Phone

+86-400-058-9000

ADDRESS

Other Single-Use Bioprocess Bags and Bottles You May Like

BioHub<sup>®</sup> 3D Single-use Storage Bags

BioHub^® 3D Single-use Storage Bags

NovaLinX<sup>®</sup> Nuclease-free Single-Use Bioprocess Bags

NovaLinX^® Nuclease-free Single-Use Bioprocess Bags

BioHub<sup>®</sup> Single-Use Storage Bottles

BioHub^® Single-Use Storage Bottles

BioHub<sup>®</sup> S Sterile Sampling Bags

BioHub^® S Sterile Sampling Bags

News & Events

New Product | BioLink CytoLinX<sup>®</sup> GB Benchtop Bioreactor

08 Dec 2023

BioHub®2D Single-use Storage bags

Features of BioHub® 2D Single-use Storage bags

Specifications of BioHub® 2D Single-use Storage bags

Quality Control of BioHub® 2D Single-use Storage bags

2D Storage Bags and Matching Holder Series

Trays for 2D storage bags: Plastic trays

Trays for 2D storage bags: Stainless steel trays

Cryopreservation cases for 2D storage bags

BioHub® Film

Other Single-Use Bioprocess Bags and Bottles You May Like

BioHub^®2D Single-use Storage bags

Features of BioHub^® 2D Single-use Storage bags

Specifications of BioHub^® 2D Single-use Storage bags

Quality Control of BioHub^® 2D Single-use Storage bags

BioHub^® Film
