Applications of BioHub® SC Sterile Cutter

Features of BioHub® SC Sterile Cutter

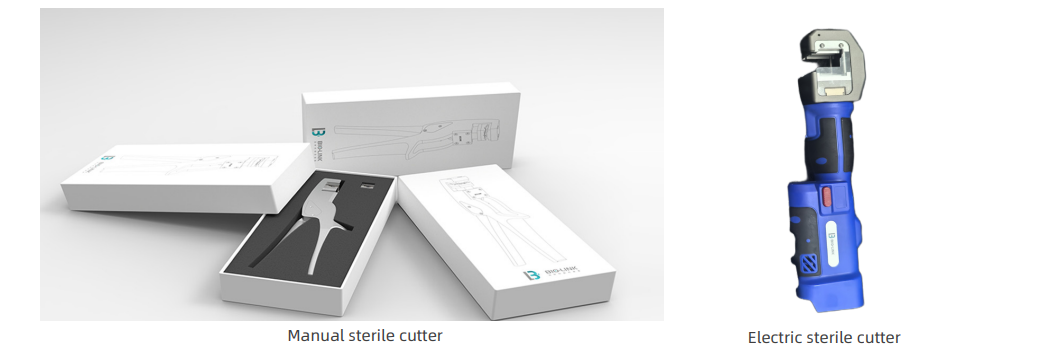

Manual Cutter:

Electric Cutter:

Name: BioHub ® SC Sterile Cutter
Brand: Bio-Link
Price: 100 USD

In the single-use fluid technology, the sterile disconnection route of the tubing can be realized by multiple means. In which, BioHub^® SC Sterile Cutter is a compact device that is intuitive, reliable, and easy to use and that integrates the sterile disconnection and sealing functions all in one. In a matter of seconds, the single-use tubing can be firmly squeezed to be cut into two independent sterile fluid tubings. This disconnecting tool has manual or electric two types.

Inquiry

Download

Applications Features Operation Specifications Order Information Contact us

Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.

Sterile disconnection of sampling tubings.
Sterile disconnection of feeding tubings.
Sterile transfer of other liquids such as intermediates and primary liquid.

Secure a Sterile Fluid Path

In a non sterile environment, apply a simple "Press-Cut" act to the metal ring and the single-use tubing to complete sealing and disconnection respectively for the fluid tubing, so as to realize sterile disconnector of the tubing.

Lightweight, Portable, Easy and Efficient

The product is small and light, independent of utilities, easily movable to wherever you need it, disconnection time as short as 5 seconds, all of which enhances productivity.

Wide Application Coverage and Powerful Flexibility

There is no tubing material limit. Applicable for either TPE tubing or silica gel tubing. Suitable for the sterile disconnection of tubings with diameter OD1/4" -OD3/4", also, for whether an empty tubing, liquid-contained tubing or pressurized tubing.

Meticulous Workmanship and After-sales Guarantee

Even coating, smooth surface, mechanical design, low fault rate, and when the cutter jaw reaches the upper limit times, its returnable maintenance is available.

Rigorous Quality Control and Validation

Rigorous validation has been conduct on the single-use metal disconnection system components to ensure the continuous stability of a sterile disconnection and avoid unnecessary losses caused by cross contamination of customer products.

Lab Cutter

During production, sterile disconnection of a metal ring by a single person is an easy-to-realize operation.

Aseptic Disconnector

Use the BioHub^® SC Sterile Cutter to place the metal ring to be disconnected at the center from top to bottom of the cutting port.
Press hard tactfully and then disconnect the tubing.
The cutting site is securely sealed to form two independent sterile tubings.

Parameters	Description
Material	Aluminum alloy is adopted for overall design, and the cutting jaw is made by the ZrN-coated steel produced from the chromium molybdenum vanadium gold powder metallurgy
Applicable tubing diameters	Cutting jaw for small diameter tubing Cutting jaw for large diameter tubing	1/4" * 7/16"
		3/8" * 5/8" , 1/2" * 3/4"
Voltage	12 V (storage battery)
IP grade	IP43
Weight	3kg

Item		Product code
Manual Sterile Cutter		BLKHCUT01
Electric Sterile Cutter		BLKECUT02
