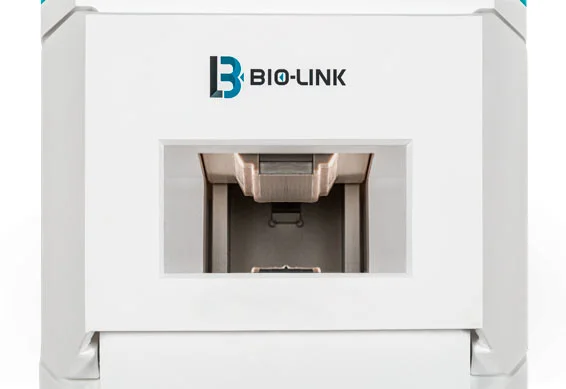

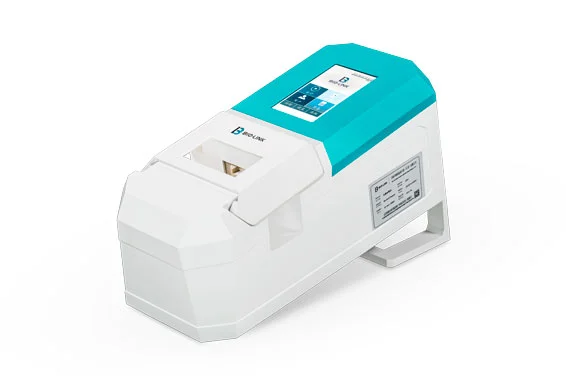

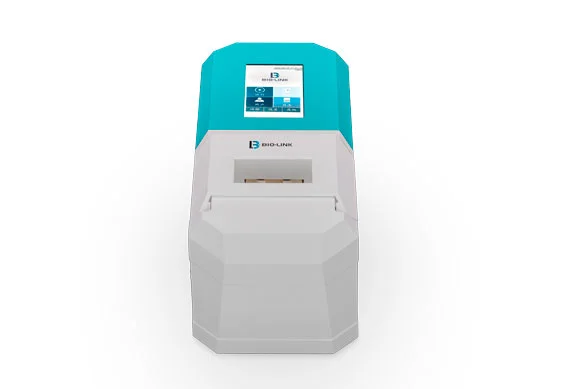

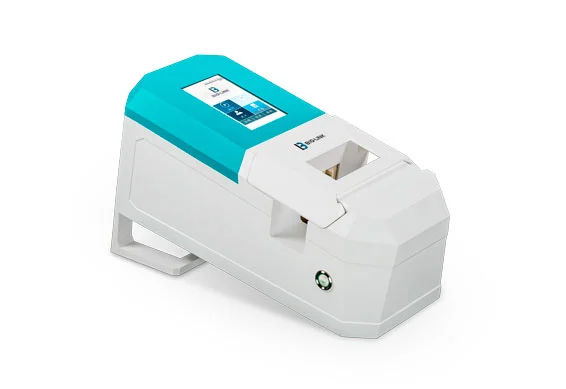

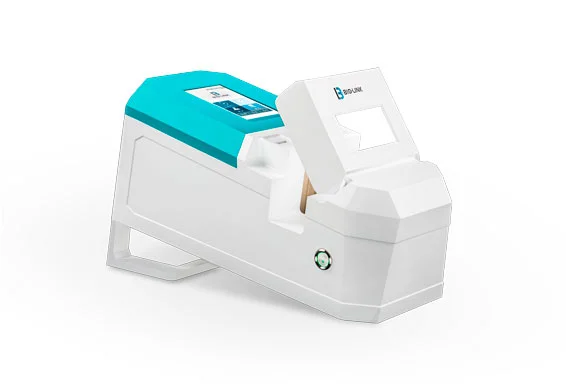

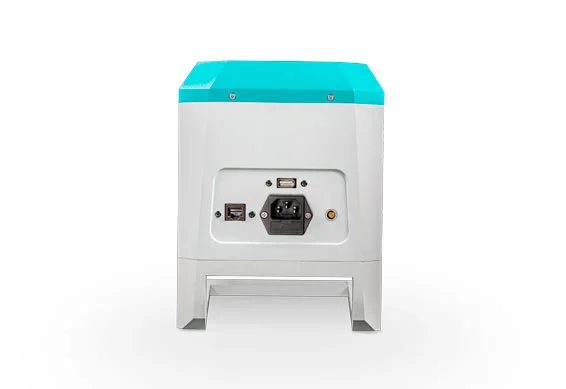

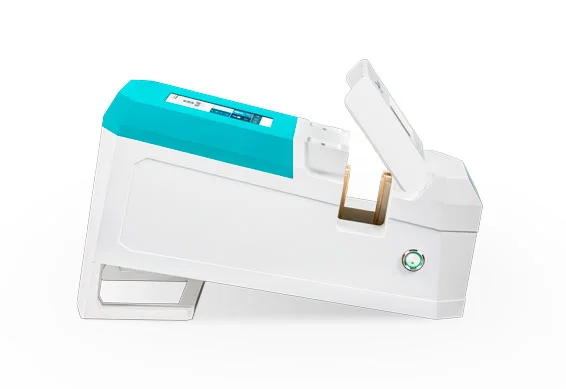

BioHub® Sealer Ⅱ

BioHub® Sealer Ⅱ can be used to disconnect disposable components used in biopharmaceutical manufacturing processes, maintaining product sterility even in non-sterile environments.

Inquiry
Download
Video Features Specifications Ordering Information Contact us

Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.


Video of BioHub® Sealer Ⅱ

Features of BioHub® Sealer Ⅱ

  • Wide applicable range

Applicable to tubing sizes from OD1/4″ to OD1″, covering common-used tubing diameters in the biopharmaceutical industry


  • High compatibility

Suitable for 2 major TPE tubings on the market: C-Flex® 374 and AdvantaFlex TM, The sealing process for tubing from other brands is customizable.


  • Comfortable operation

The tubing can be operated at a length as short as 17 cm, facilitating the operation.


  • Fast and efficient

The sealing process can be completed within 3–4.5 min based on the tubing size and TPE material. Two cooling modes are available: high-speed and medium-speed.


  • Lightweight and portable

Lightweight design, with the entire machine weighing only 4kg.


  • Flexible

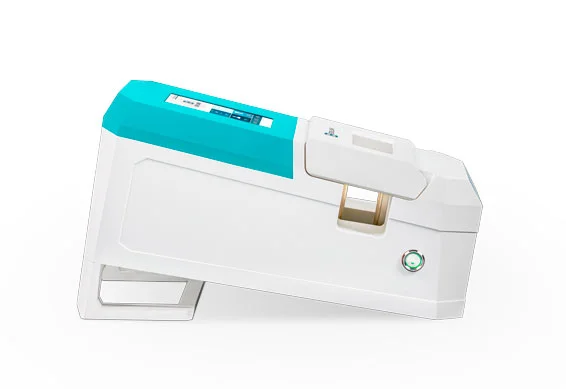

The device can be hung vertically or placed horizontally according to the actual use conditions; the screen can rotate and the display is excellent in either position.


  • Economical and practical

Sterile disconnection can be easily achieved with one device, no accessory needed when switching between different tubing diameters.


  • Easy-to-use

Operators are guided in tubing to be sealed and a step-by-step process displayed on the screen, and can easily track and monitor every step of the sealing process.


  • User-friendly HMI

5-inch touch screen, displaying sealing process in real-time.


  • Remarkable sealing effect

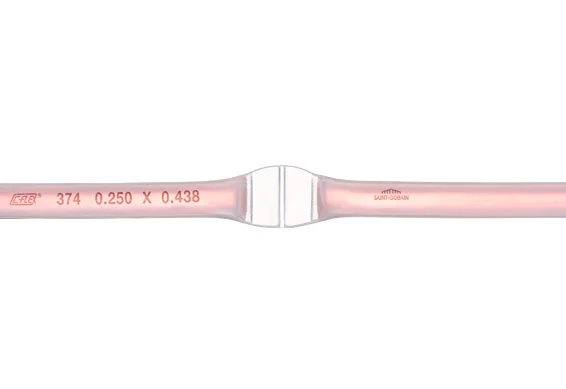

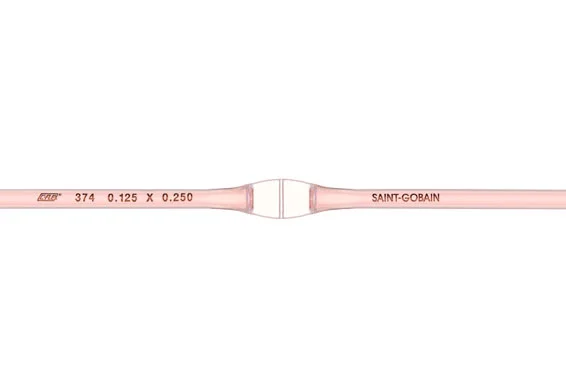

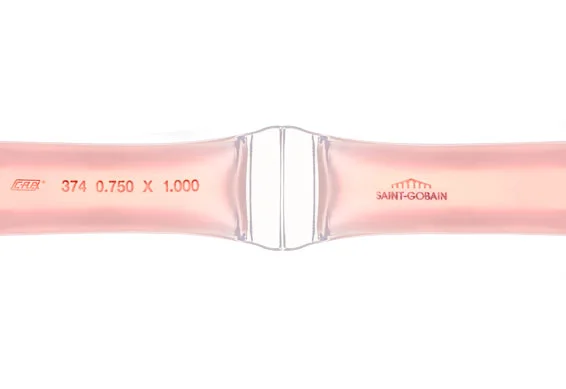

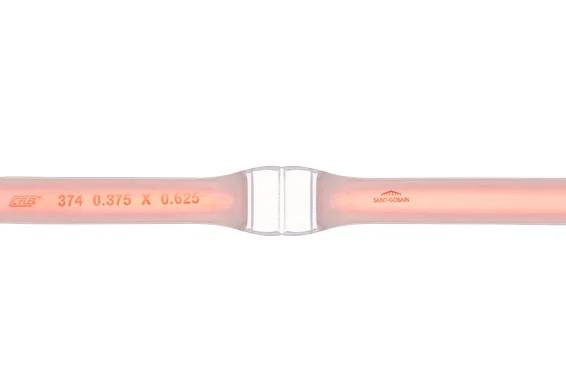

Sealing can be achieved for empty tubings, tubings with liquid, and tubings with liquid under pressurized conditions; the seal width is up to 20 mm, with a clear cutting guide line to ensure accurate disconnection.


  • Reliable data

Five-level permissions are available, with more detailed audit trail and function classification.


  • Highly stable

The device has built-in aging test program; each unit undergoes a 48-hour continuous sealing test before leaving the factory to ensure stable operation.


Specifications of BioHub® Sealer Ⅱ

Power supply220 V/50 Hz
Power300 W
Equipment dimensions390 mm * 157 mm * 142 mm
Net weight4 KG
Heat sealing duration3 - 4.5 min
Cooling modeAir cooling
Heat sealing conditions5 ~ 40℃, 50% ~ 80% RH
Protection levelIP22

Ordering Information of BioHub® Sealer Ⅱ

ItemProduct code
BioHub® Sealer ⅡBLKSEALER02
IOQ Validation ServiceIOQ-SEAL-01
