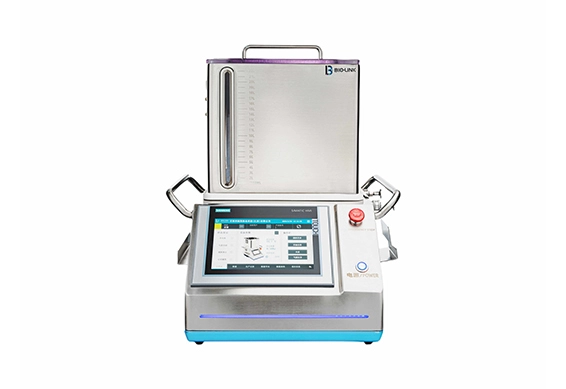

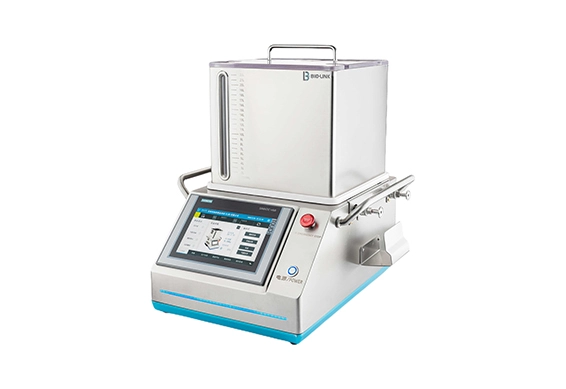

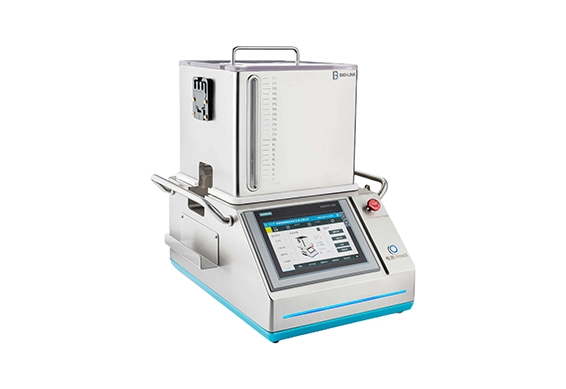

BioHub^® DS Single-Use Desktop Mixing System

Name: BioHub ® DS Single-Use Desktop Mixing System
Brand: Bio-Link

BioHub^® DS Single-Use Desktop Mixing System is equipped with a unique paddle to meet the mixing of small volume of material and liquid.

Inquiry

Features Details Specifications Contact us

In biopharmaceutical process, small-volume mixing is required throughout the entire production process while large-volume equipment cannot realize such mixing. Therefore, BioLink launched a desktop mixing system for small-volume liquid mixing. The system with a nice and neat appearance is easy to clean and operate. It facili- tates the small-volume mixing in lab research and process development. Applicable processes include plasmid mixing, intermediate product mixing, semi-finished product preparation, and drug product preparation.

Features of BioHub^® DS Single-Use Desktop Mixing System

• The compact design requires a smaller occupation of site area and can realize easy mixing on the table

• Two specifications are available: 10 L and 20 L, covering a volume range from 560 mL to 22 L

• Modular design allows flexible configuration of functions, including weighing, mixing, temperature, jacket, pH, Cond, and printer, etc.

• Data integrity is compliant with 21CFR Part 11, satisfying the GMP requirements

• Flexible and highly customizable consumables as well as unique impellers are easy and efficient to use

Details About BioHub^® DS Single-Use Desktop Mixing System

The BioHub^® Series bioprocessing single-use mixer works through a magnetic coupling motor to drive the single-use stirring paddles in the mixing bag to rotate, and is equipped with physical shaft seals. This laboratory mixer stirrer is safe, reliable, stable and efficient. Working together with a stainless steel bin, it can meet liquid-liquid mixing and solid-liquid mixing needs, and suitable for various small-volume mixing applications, such as medium preparation, buffer preparation, intermediate mixing, semi-finished product mixing, and final pharmaceutical product mixing.

The laboratory mixing equipment consists of a stainless steel bin, a control system, a magnetic mixing motor, and single-use mixer bags. The modular design allows for flexible combinations of different functions on demand, such as mixing, weighing, feedback-controlled temperature monitoring, pH, and conductivity, while supporting high levels of customization to the complex needs of customers. The lab stirrer mixer also provides three-level permissions and data export to meet the data integrity needs of pharmaceutical customers.

Specifications of BioHub^® DS Single-Use Desktop Mixing System

Single-Use Integrated Desktop Mixing System

	MX10 MX20
System dimension L × W (mm)	465*454	558*529
System height H (mm)	520	606
System weight (kg)	40	53

Wheels Desktop without caster

Material (bin and bracket)	SS304L
Jacket	Standard
Maximum working pressure in the jacket	6 bar
Jacket inlet and outlet	Clamp TC25 joint
Volume in the jacket L (estimated)	0.56 L-12 L	0.95 L-22 L
Heat exchange area X m2 (estimated)	0.264 sq.m	0.395 sq.m
Weighing unit	LSD-I6 10 kg, Smowo	LSD-I6 20 kg, Smowo
Temperature unit	Standard, MISUMI
Storage temperature	0-40 ° C, non-condensing environment
Operating temperature	4-60 ° C, non-condensing environment
Power	60 W
Rotation speed	0-400 rpm Note: The stated rotation speed is obtained based on water test conditions. The maximum rotation speed needs to be determined by the actual volume and viscosity of the feed liquid in the process.
Wire length	3 M
IP grade	IP55
Electrical compliance	CCC, PSE, CSA, EN, UL, IEC compliant
Voltage	220 V, 50 Hz, 10 A

Ordering Information

Single-Use Integrated Desktop Mixing System

MX10	MX20	Agitation	Weighing	Jacket	Tempera- ture	pH	Cond	Printer
DSMX0010L000	DSMX0020L000	√	√	√	√	×	×	×
DSMX0010L001	DSMX0020L001	√	√	√	√	√	×	×
DSMX0010L002	DSMX0020L002	√	√	√	√	×	√	×
DSMX0010L003	DSMX0020L003	√	√	√	√	×	×	√
DSMX0010L004	DSMX0020L004	√	√	√	√	√	√	×
DSMX0010L005	DSMX0020L005	√	√	√	√	√	×	√
DSMX0010L006	DSMX0020L006	√	√	√	√	×	√	√
DSMX0010L007	DSMX0020L007	√	√	√	√	√	√	√

Link With Us Now!

Want to know more about BioLink bioprocessing products? Feel free to contact BioLink now!

Email

info@biolink.com

Phone

+86-400-058-9000

ADDRESS

Other Single-Use Mixing System You May Like

BioHub<sup>®</sup> BM Single-Use Magnetic Mixing System

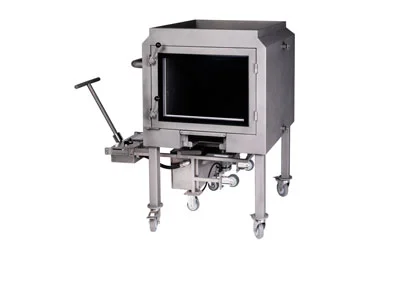

BioHub^® BM Single-Use Magnetic Mixing System
